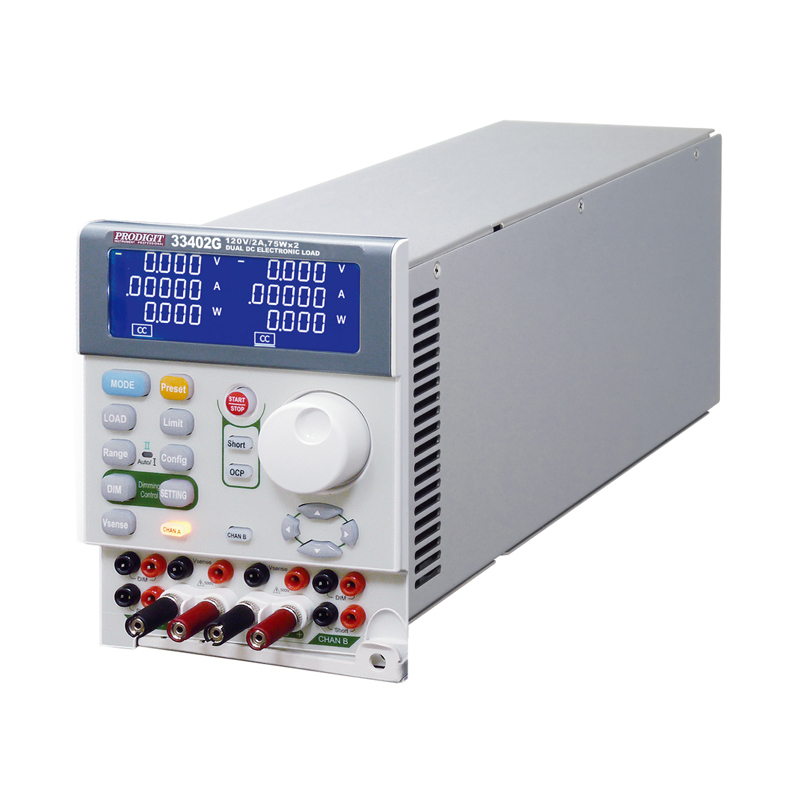

33402G LED DC Electronic Load Simulator 120V, 2A, 75Wx2



Description



l   Each 3340G Series module has its own control and display panel, LED/CC/CR/CV/CP/ Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficiently¡Aalso can be controlled intranet via RS232¡BEthernet¡BUSB and GPIB interface.

l   Short circuit test by external relay (there is an optional fixture for short), Short Time can be set and Short Voltage can be measured.

l   Built-in dimming control signal output is for PWM dimming test.

l   Simulate LED forword Bias voltage (Vd) and Resistance (Rd).

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡§ + ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l   150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.



Features



l   LED mode load for LED Power Driver test.

l   CC, CR, CV, CP, LED and Dynamic mode.

l   Simulate LED Forward Bias Voltage (Vd) and Resistance (Rd).

l   Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions.

l   Fast Response for PWM dimming test.

l   Built-in dimming control signal for PWM dimming test.

l   Short circuit test by external relay (built-in short relay driver circuit).

l   5 digital V / A / W Meter.

l   Protections against V, I, W, and ¢J.

l   Must be configured in 3302G¡esingle channel mainframe¡f¡B3305G¡etwo channels mainframe¡for 3300G¡efour channels mainframe¡fand the mainframe with 150 sets Store / Recall memory.

l   Optional Interface¡GGPIB¡BRS232¡BUSB¡BLAN.

l   Voltage can be increased to 600V¡]option¡^

l   The power input dimming frequency of 3345G & 33402G is up to 25KHZ that is the fastest and widest of bandwidth electronic load in the market.

l   The dimming control output of 3345G & 33402G is DC-10KHZ

l   New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads.



Specifications
